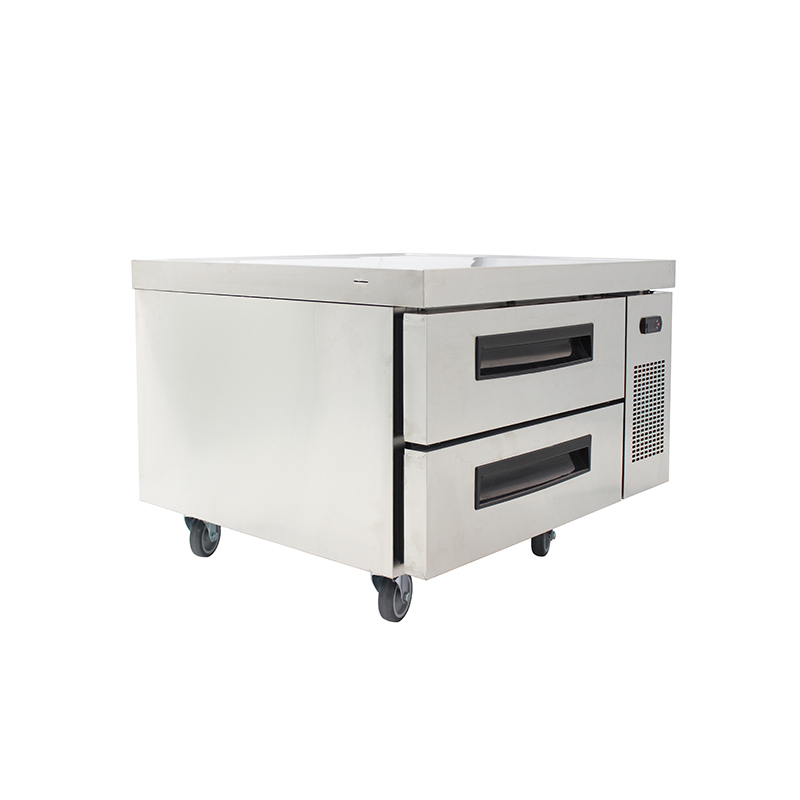

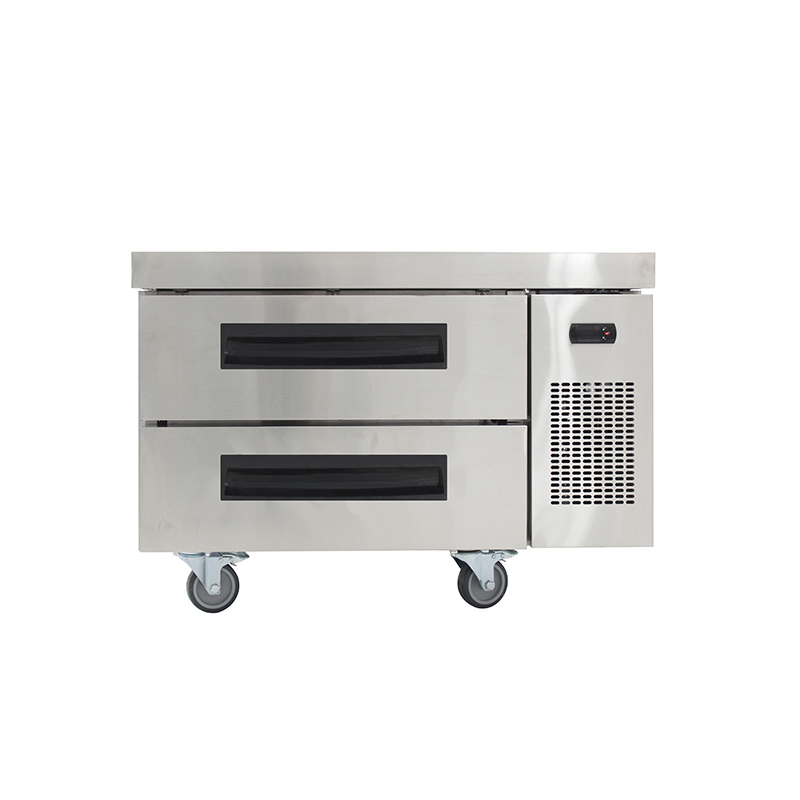

CB36TN
Standard Features:
Stainless steel exterior and interior.
Carel digital controller.
Embraco compressor.
Environmentally friendly refrigerant R290.

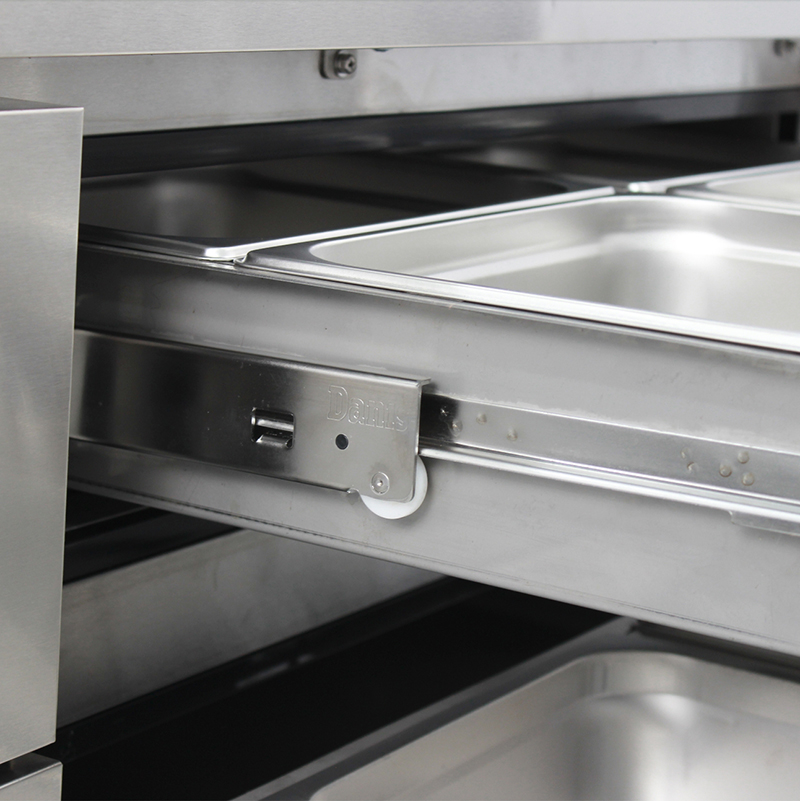

Heavy-duty stainless steel drawer slides and rollers.
Magnetic drawer gaskets.
Recessed door handles.

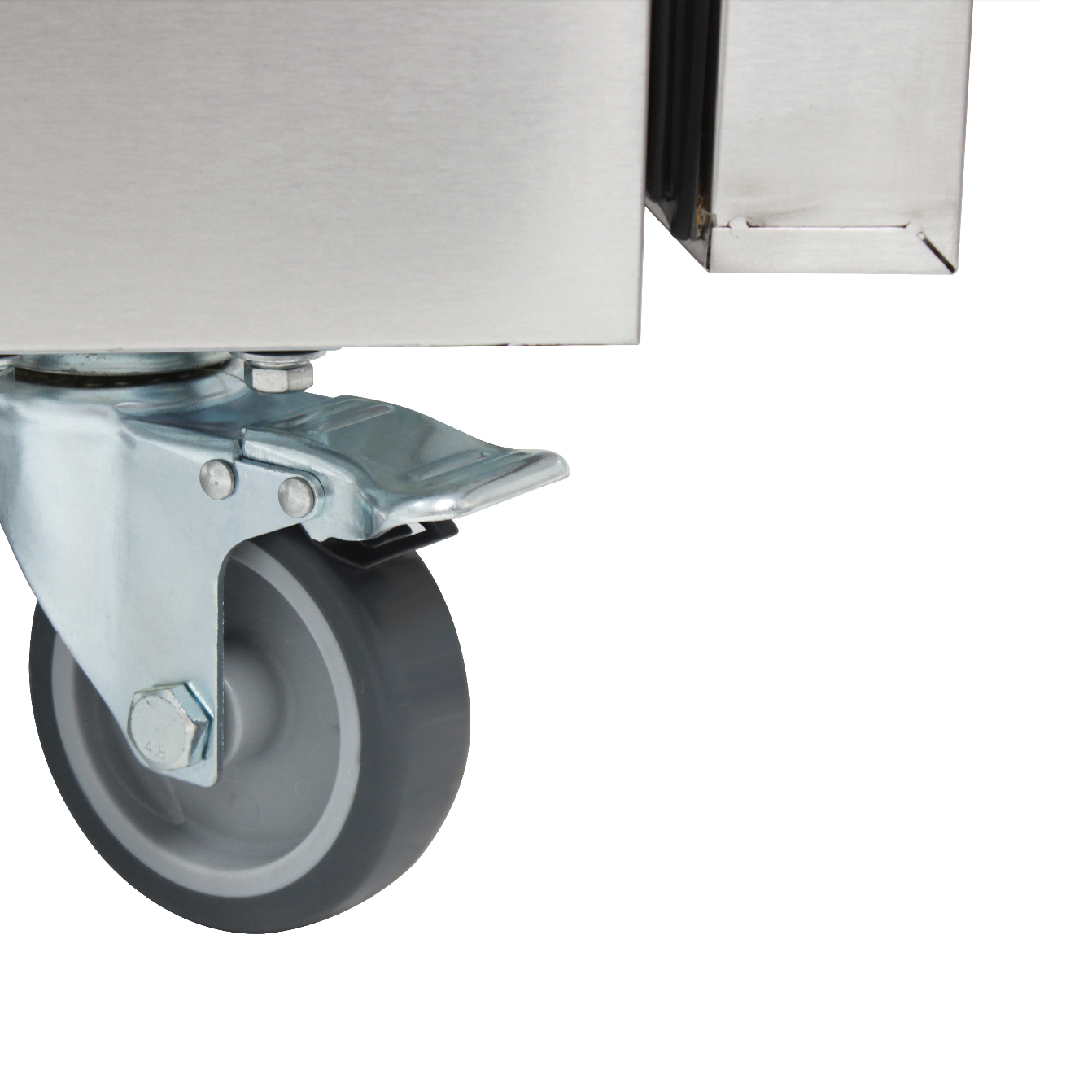

Pre-installed casters.
Gravity-fed self-closing drawers.
Step design on the counter-top.
Optional:

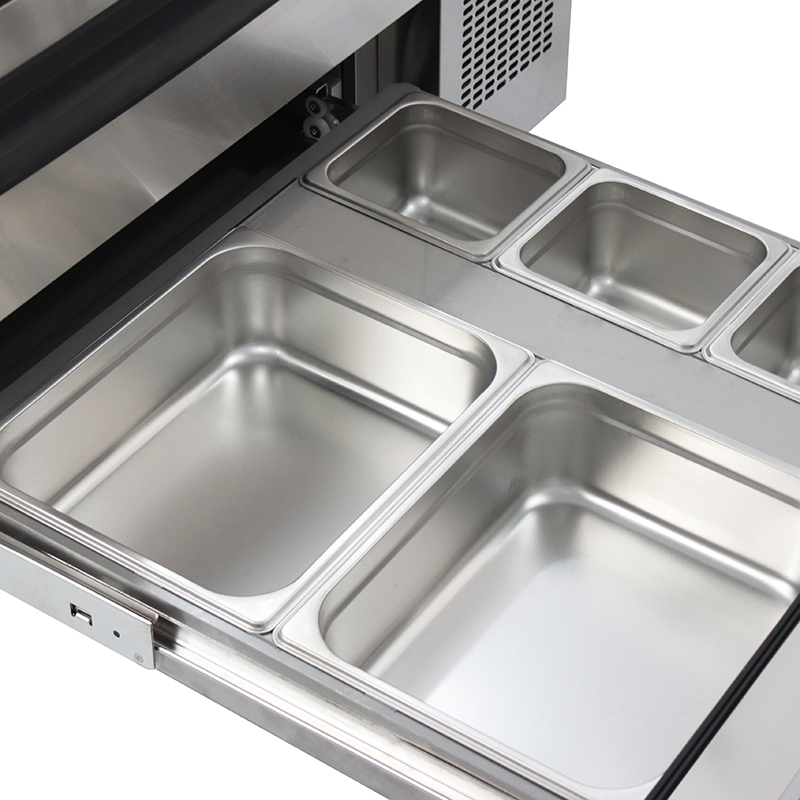

Stainless steel pan or PC pan.
Model No. | Type | Dimensions (mm) | Dimensions (inch) | Net Capacity (L) | Net Capacity (cu.ft) | Temperature Range (°C) | Temperature Range (°F) | Compressor | Thermostat | Coolant | 40' Container Loading Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CB36TN | Chiller | 920 × 820 × 685 | 36.2 × 32.3 × 27.2 | 72 | 2.5 | 0 ~ 5 | 32 ~ 41 | Huayi | Carel | R290 | 52 |
| CB52TN | Chiller | 1340 × 820 × 685 | 52.8 × 32.3 × 27.2 | 131 | 4.6 | 0 ~ 5 | 32 ~ 41 | Huayi | Carel | R290 | 32 |
| CB72TN | Chiller | 1835 × 820 × 685 | 72.2 × 32.3 × 27.2 | 178 | 6.3 | 0 ~ 5 | 32 ~ 41 | Huayi | Carel | R290 | 26 |
| CB36BT | Freezer | 1005 × 820 × 690 | 39.6 × 32.3 × 27.2 | 72 | 2.5 | -20 ~ -16 | -4 ~ 3.2 | Huayi | Carel | R290 | 52 |
| CB52BT | Freezer | 1425 × 820 × 690 | 56.1 × 32.3 × 27.2 | 131 | 4.6 | -20 ~ -16 | -4 ~ 3.2 | Huayi | Carel | R290 | 32 |
| CB72BT | Freezer | 1920 × 820 × 690 | 75.6 × 32.3 × 27.2 | 178 | 6.3 | -20 ~ -16 | -4 ~ 3.2 | Huayi | Carel | R290 | 26 |
Standard Features:
Stainless steel exterior and interior.
Carel digital controller.
Embraco compressor.
Environmentally friendly refrigerant R290.
Heavy-duty stainless steel drawer slides and rollers.
Magnetic drawer gaskets.
Recessed door handles.
Pre-installed casters.
Gravity-fed self-closing drawers.
Step design on the counter-top.
Optional:
Stainless steel pan or PC pan.
Model No. | Type | Dimensions (mm) | Dimensions (inch) | Net Capacity (L) | Net Capacity (cu.ft) | Temperature Range (°C) | Temperature Range (°F) | Compressor | Thermostat | Coolant | 40' Container Loading Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CB36TN | Chiller | 920 × 820 × 685 | 36.2 × 32.3 × 27.2 | 72 | 2.5 | 0 ~ 5 | 32 ~ 41 | Huayi | Carel | R290 | 52 |
| CB52TN | Chiller | 1340 × 820 × 685 | 52.8 × 32.3 × 27.2 | 131 | 4.6 | 0 ~ 5 | 32 ~ 41 | Huayi | Carel | R290 | 32 |
| CB72TN | Chiller | 1835 × 820 × 685 | 72.2 × 32.3 × 27.2 | 178 | 6.3 | 0 ~ 5 | 32 ~ 41 | Huayi | Carel | R290 | 26 |
| CB36BT | Freezer | 1005 × 820 × 690 | 39.6 × 32.3 × 27.2 | 72 | 2.5 | -20 ~ -16 | -4 ~ 3.2 | Huayi | Carel | R290 | 52 |
| CB52BT | Freezer | 1425 × 820 × 690 | 56.1 × 32.3 × 27.2 | 131 | 4.6 | -20 ~ -16 | -4 ~ 3.2 | Huayi | Carel | R290 | 32 |
| CB72BT | Freezer | 1920 × 820 × 690 | 75.6 × 32.3 × 27.2 | 178 | 6.3 | -20 ~ -16 | -4 ~ 3.2 | Huayi | Carel | R290 | 26 |
