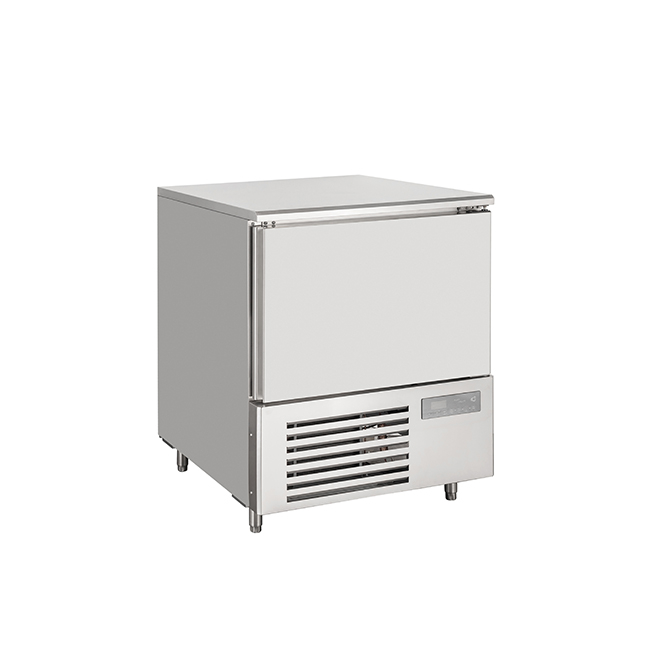

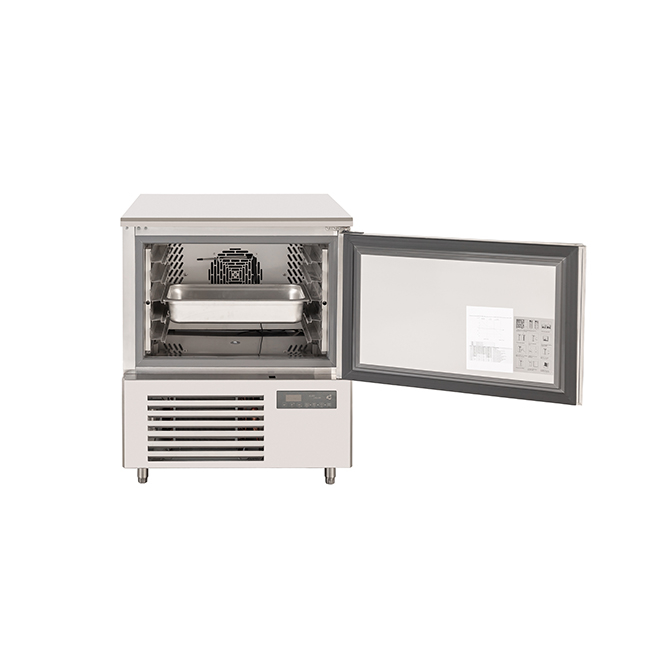

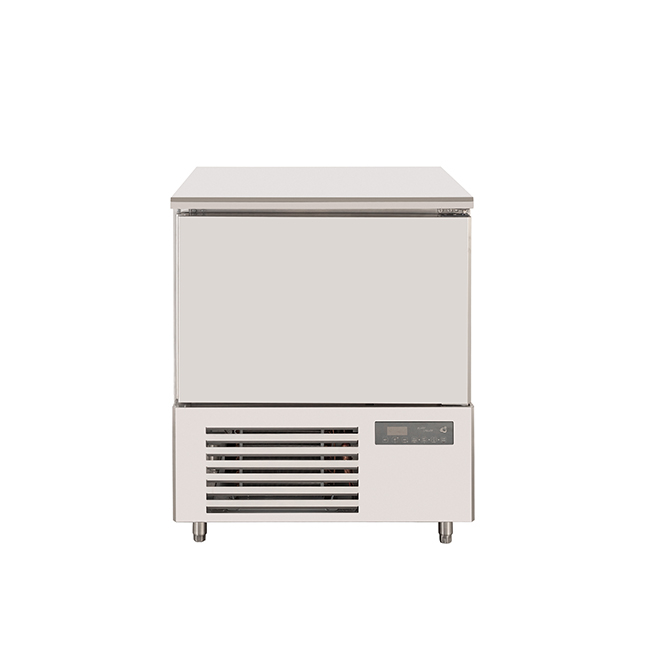

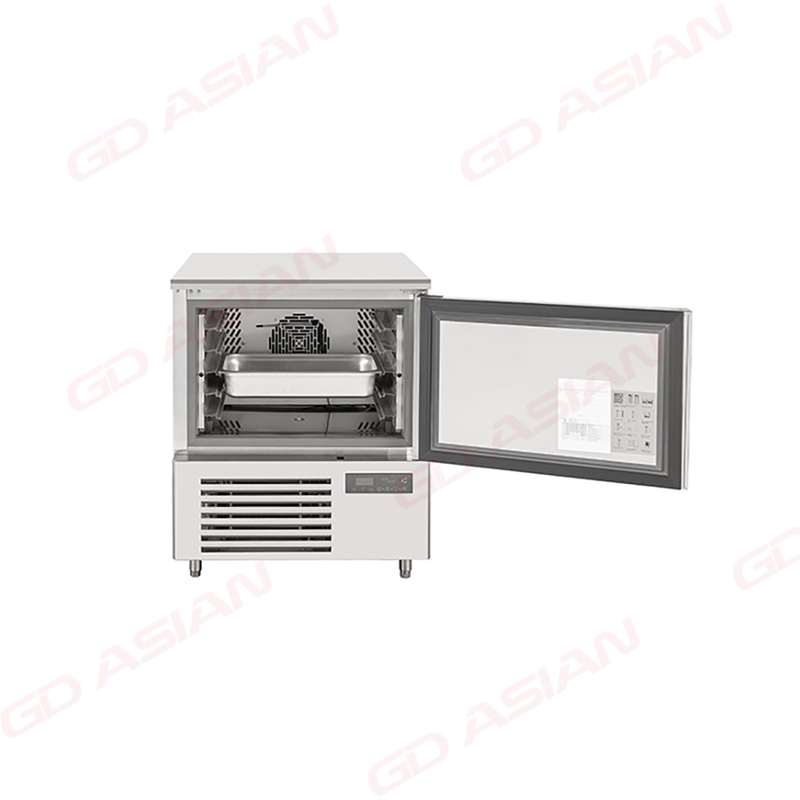

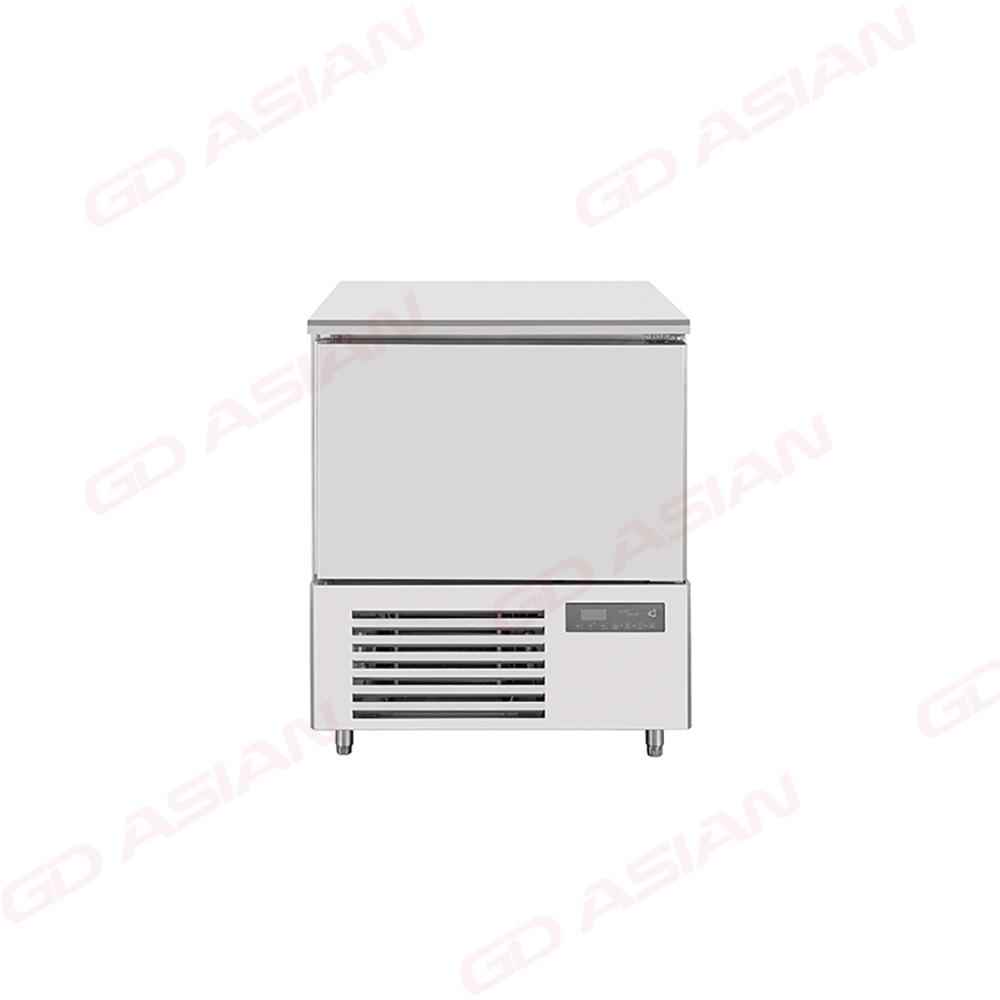

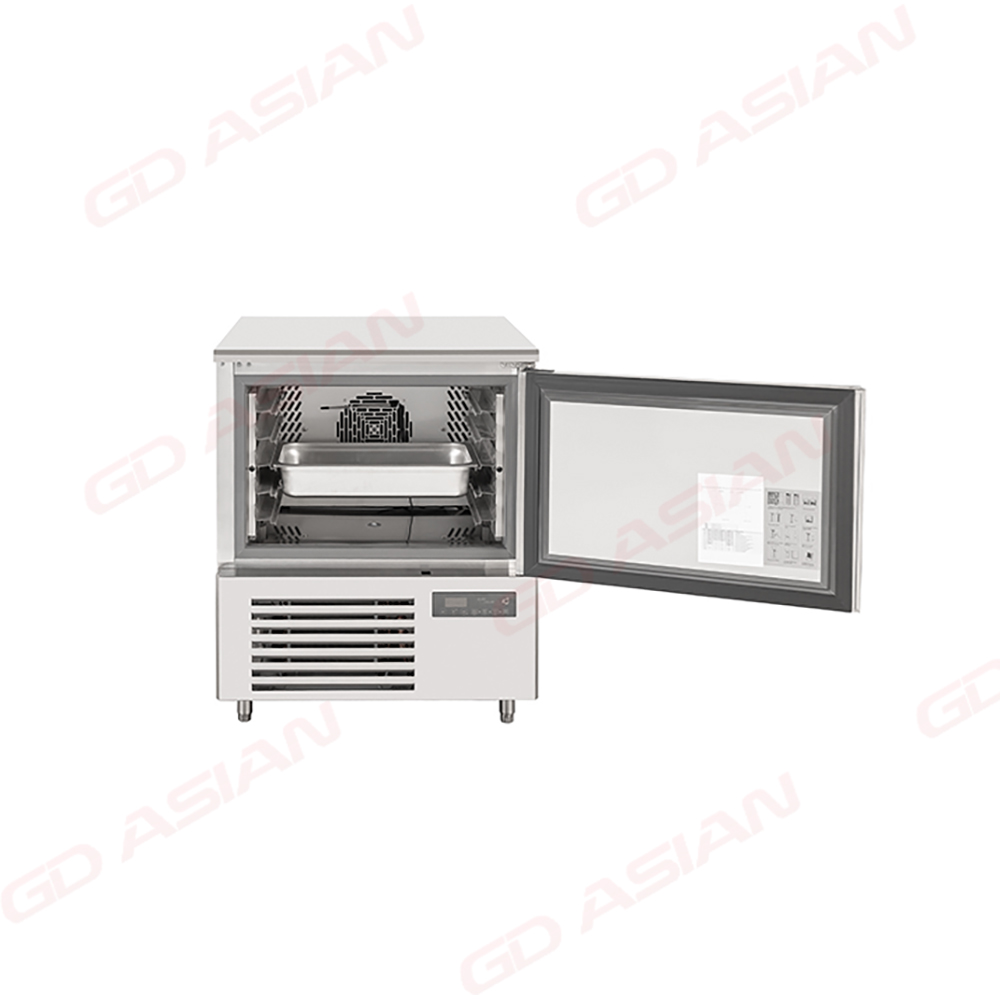

BLAST-5A
Options with 1 door, 2 doors or 3 doors
AISI 201 or AISI 304 construction

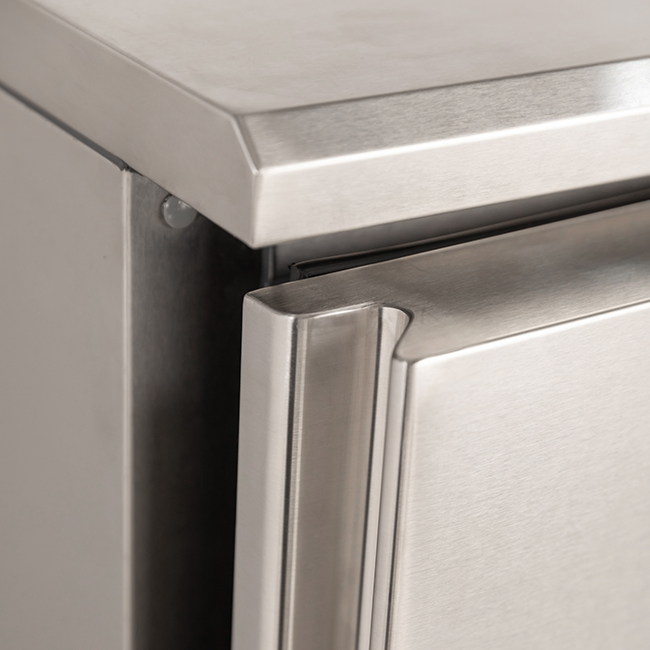

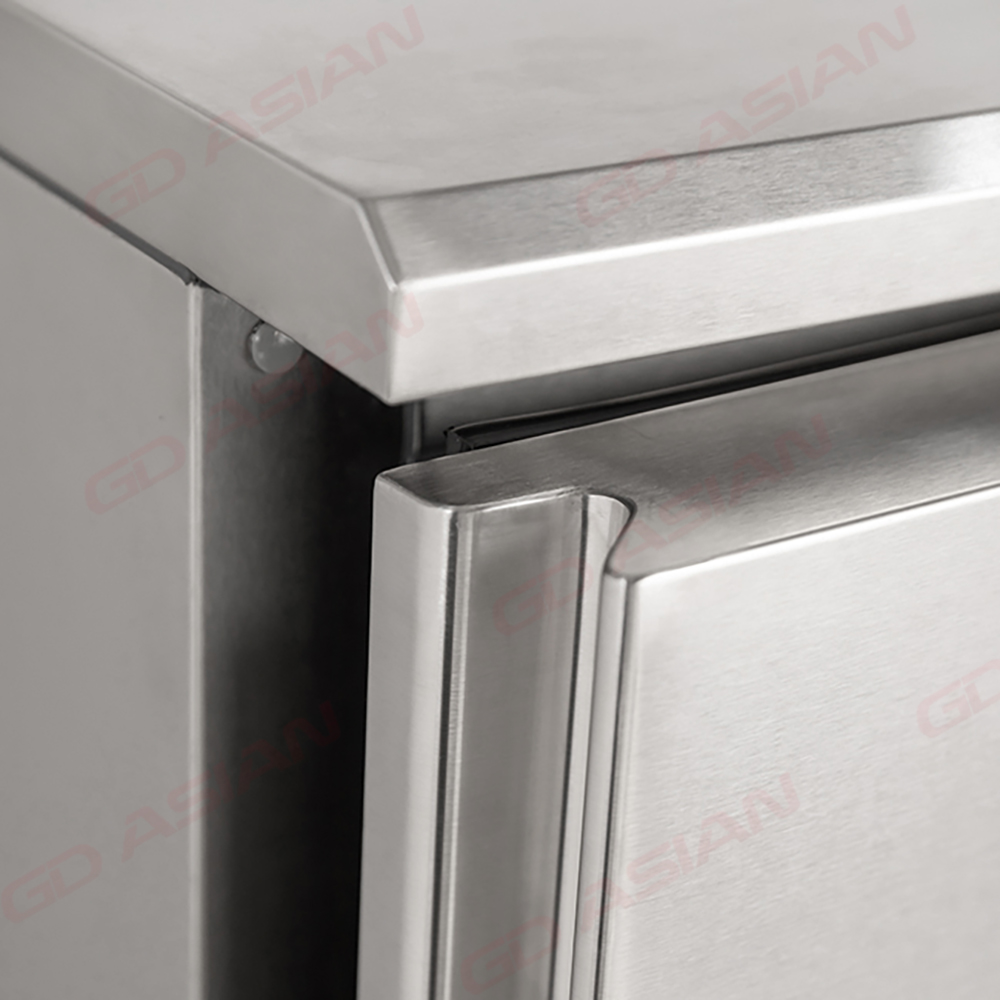

Self closing door with magnetic replaceable gasket
European standard 700mm depth and 850mm height

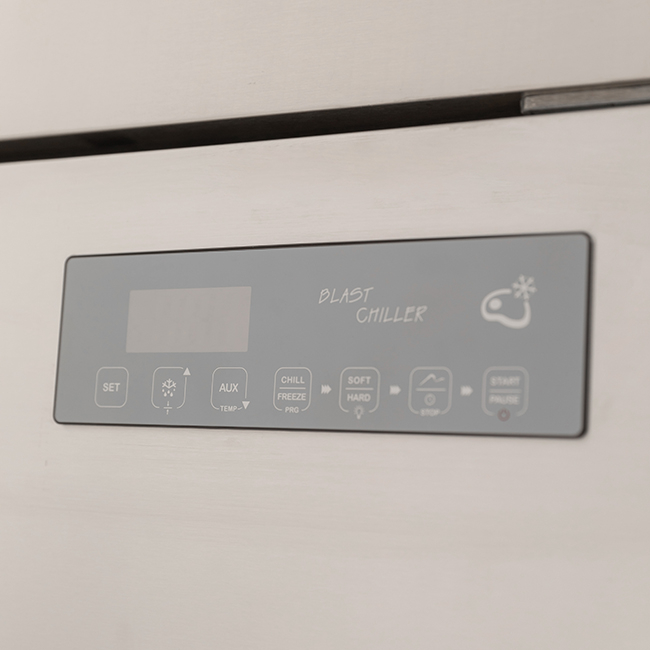

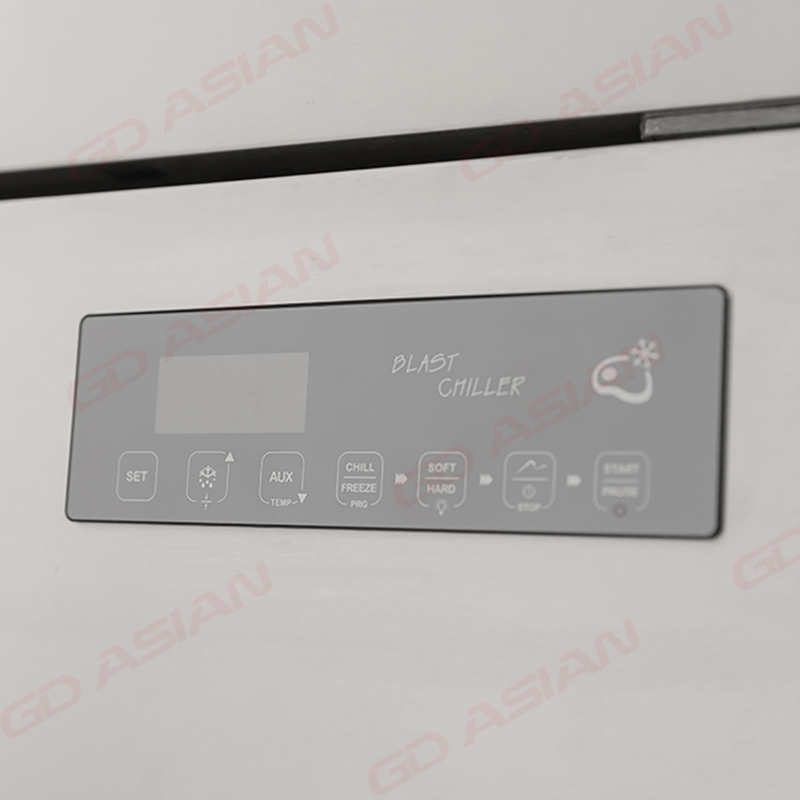

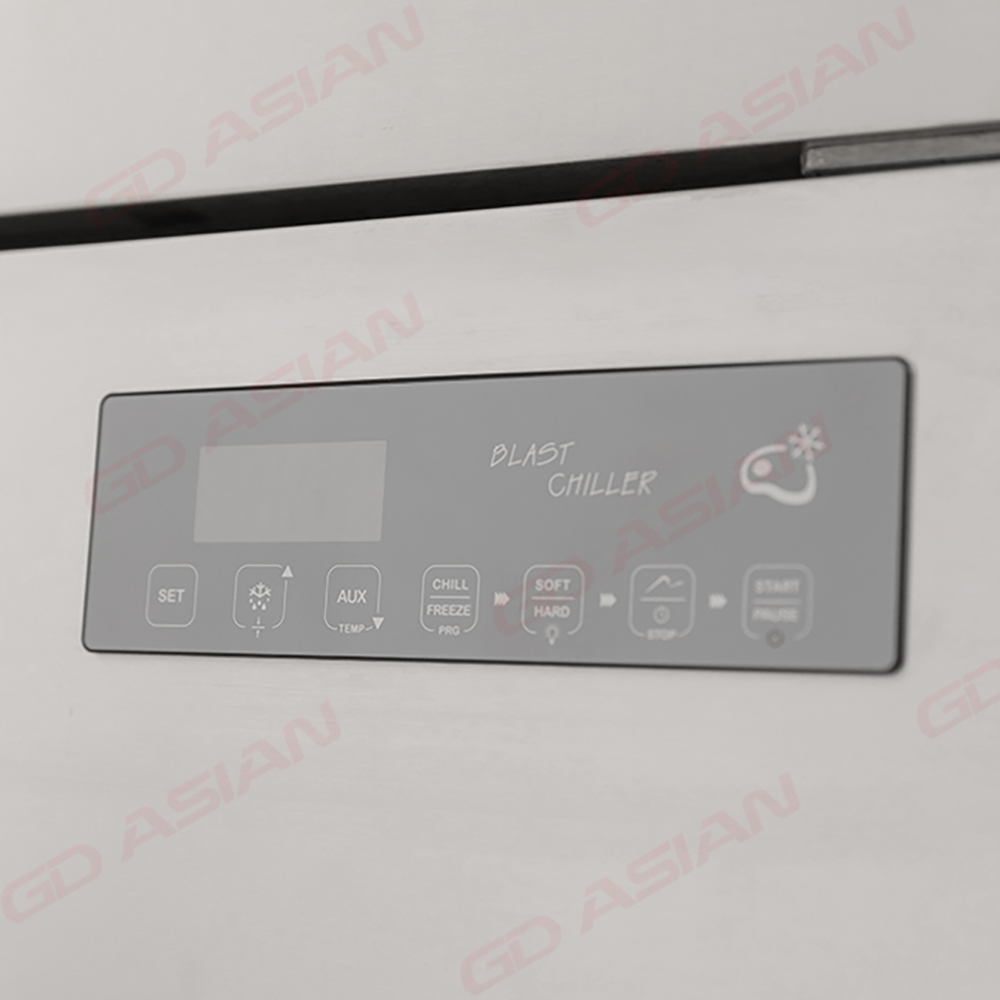

Digital controller Carel/Copeland, optional Wi-Fi function
Adjusted small feet, optional wheels
LED lighting as option

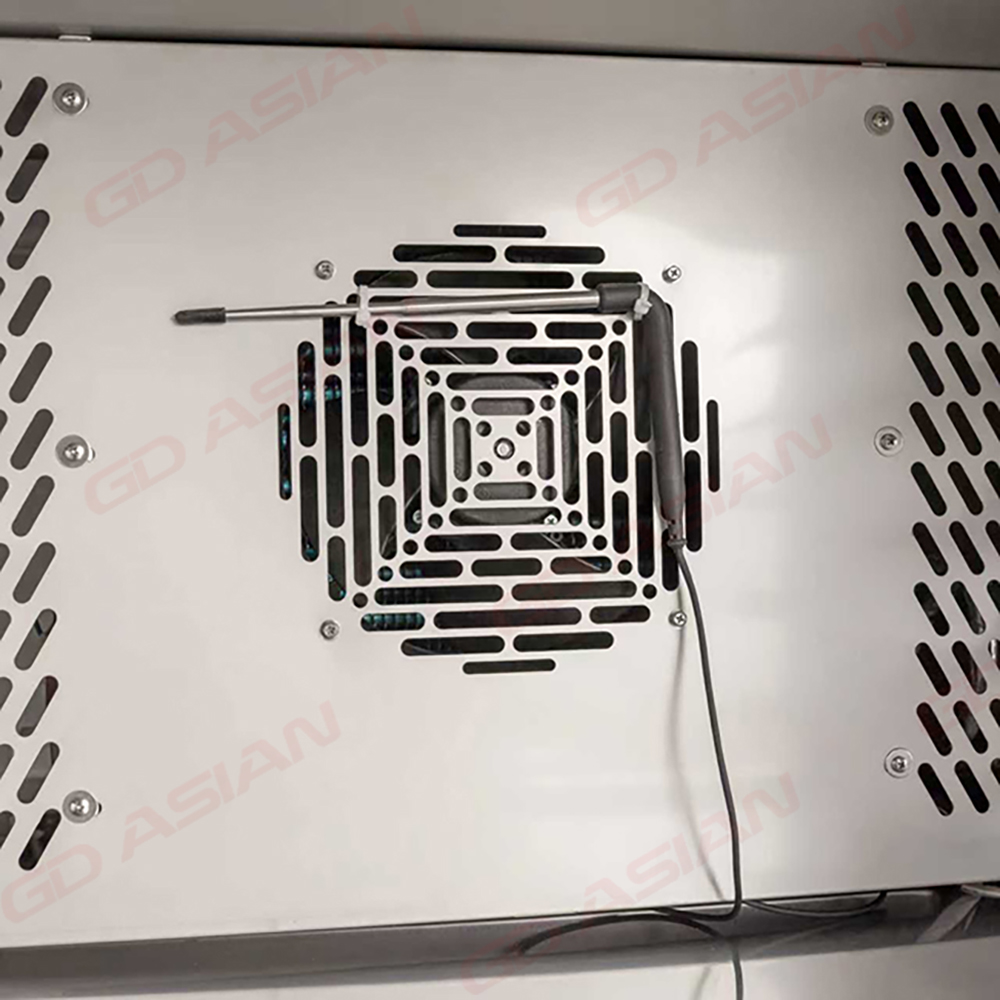

Fan assisted static cooling
Worktop options:
Open with stainless steel lid
Stainless steel solid
Granite
Open with curved or squared glass cover or integrated with topping unit
| Model | Dimension (mm) (W x D x H) | Temperature (°C) | Time 70°C → 30°C (min) | Time 70°C → -18°C (min) | Capacity (L) | V/Hz | Refrigerant | Loading Qty/40HQ |
|---|---|---|---|---|---|---|---|---|
| BLASTH-3A | 800 × 825 × 880 | -35 ~ 0 | 90 | 240 | 88 | 230/50 | R290 | 52 |
| BLASTH-5A | 800 × 825 × 980 | -35 ~ 0 | 90 | 240 | 118 | 230/50 | R290 | 52 |
| BLASTH-10A | 800 × 825 × 1445 | -35 ~ 0 | 90 | 240 | 218 | 230/50 | R290 | 26 |
| BLASTH-15A | 800 × 825 × 1795 | -35 ~ 0 | 90 | 240 | 318 | 230/50 | R290 | 26 |
