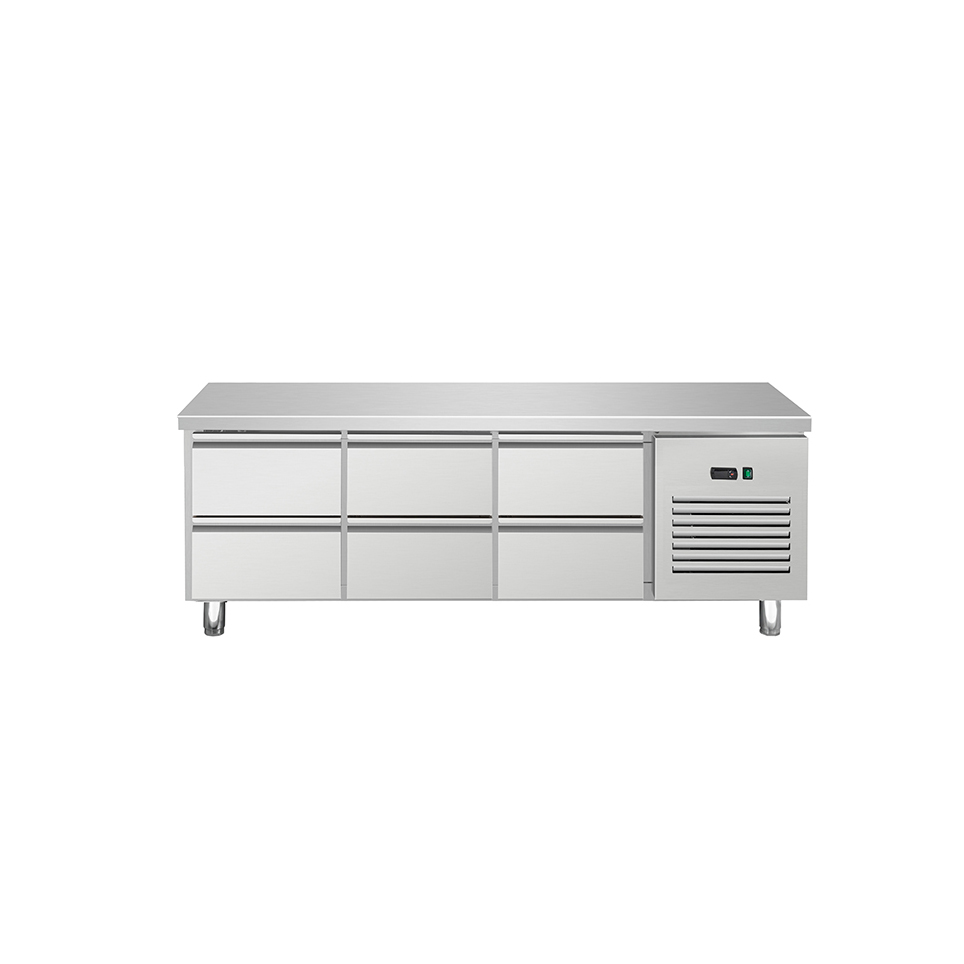

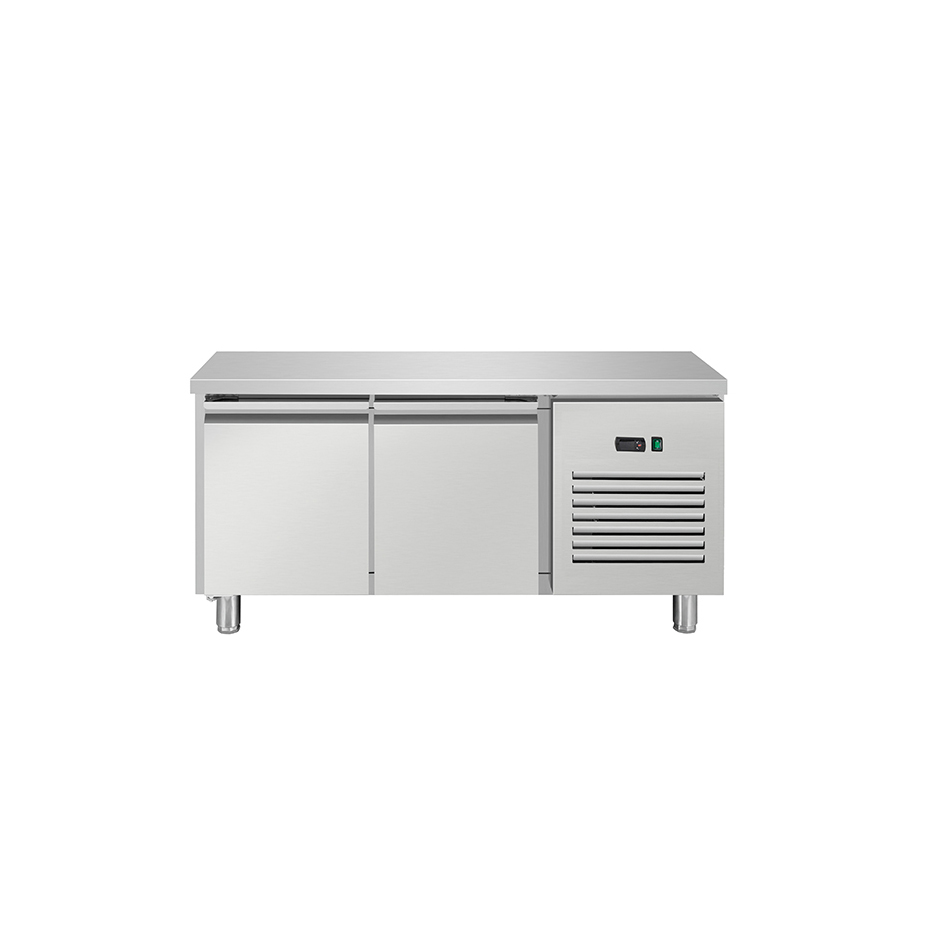

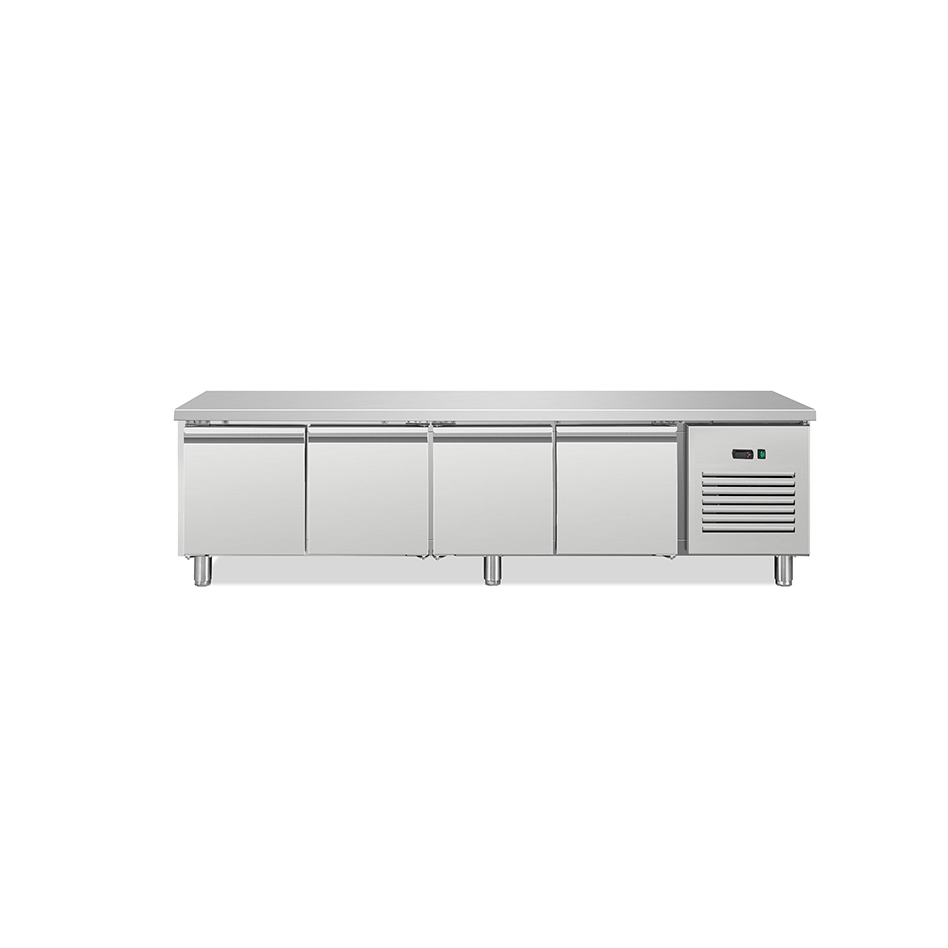

Refrigerated Counter Under Counter 650mm Height Series

This low‑profile under‑counter refrigerator measures just 650mm in height, designed to fit seamlessly beneath standard worktops in commercial kitchens. It accommodates GN 1/1 pans and offers extensive customization.
Availability:
Quantity:
  • U-GNH2100TN

REFRIGERATED COUNTER

GN 1/1 Under counter - 650mm Height

Digital controller (Wi-Fi optional)

Solid door or 1/2 drawers

Self-closing door

Adjusted feet or casters

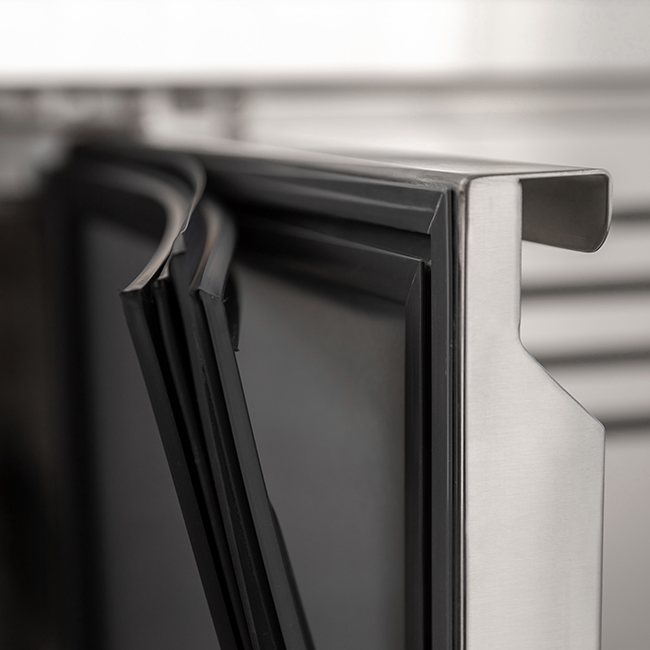

Magnetic replaceable gasketAISI 201 or AISI 304 bodyLED lighting as option



Specifications


Model U-GNH2100TN U-GNH2100BT U-GNH3100TN U-GNH3100BT U-GNH4100TN U-GNH4100BT
Dimension (mm) (W x D x H) 1360×700×650 1360×700×650 1795×700×650 1795×700×650 2230×700×650 2230×700×650
Temperature (°C) -2 ~ 8 -22 ~ -18 -2 ~ 8 -22 ~ -18 -2 ~ 8 -22 ~ -18
Capacity (L) 182 182 281 281 379 379
V/Hz 230/50 230/50 230/50 230/50 230/50 230/50
Energy class C E C E C E
Climate Class 5 4 5 4 5 4
Shelves 2 2 3 3 4 4
Refrigerant R600a R290 R600a R290 R290 R290
Loading Qty/40HQ 72 72 54 54 48 48

898bec91b5a0f19907bb155b8ec55cfc

  • Compact back‑of‑house use
    The 650mm low height allows it to fit neatly under standard worktops, making the most of under‑counter space – ideal for small snack bars, food trucks, and cafes.
  • Organised ingredient storage
    With 2, 3, or 4 doors and interchangeable drawers, you can store different food types (vegetables, meat, prepared items) separately. Works perfectly with GN 1/1 pans for quick access.
  • Front‑of‑house or self‑service areas
    When fitted with a glass door, staff or customers can see the contents without opening the unit – reducing cold air loss. Great for sandwich prep stations, salad bars, or breakfast counters.
  • Mobile refrigeration
    By replacing the feet with castors (wheels), the unit becomes a mobile cold counter that can be moved to prep areas or cleaning stations – useful for events, banquets, or kitchens that often change layout.
  • Dual‑function worktop
    The flat stainless steel top serves as a preparation surface for cutting, assembling, or plating – saving the cost and space of a separate worktable.
  • Chiller or freezer option
    Available as a chiller (refrigerator) or freezer – use it for daily chilled items like dairy and drinks, or switch to a freezer for ice cream and frozen ingredients (depending on model).
