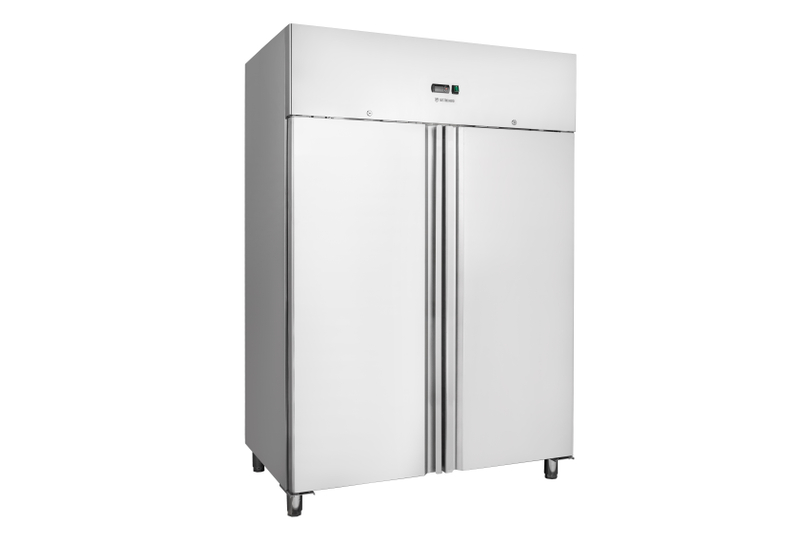

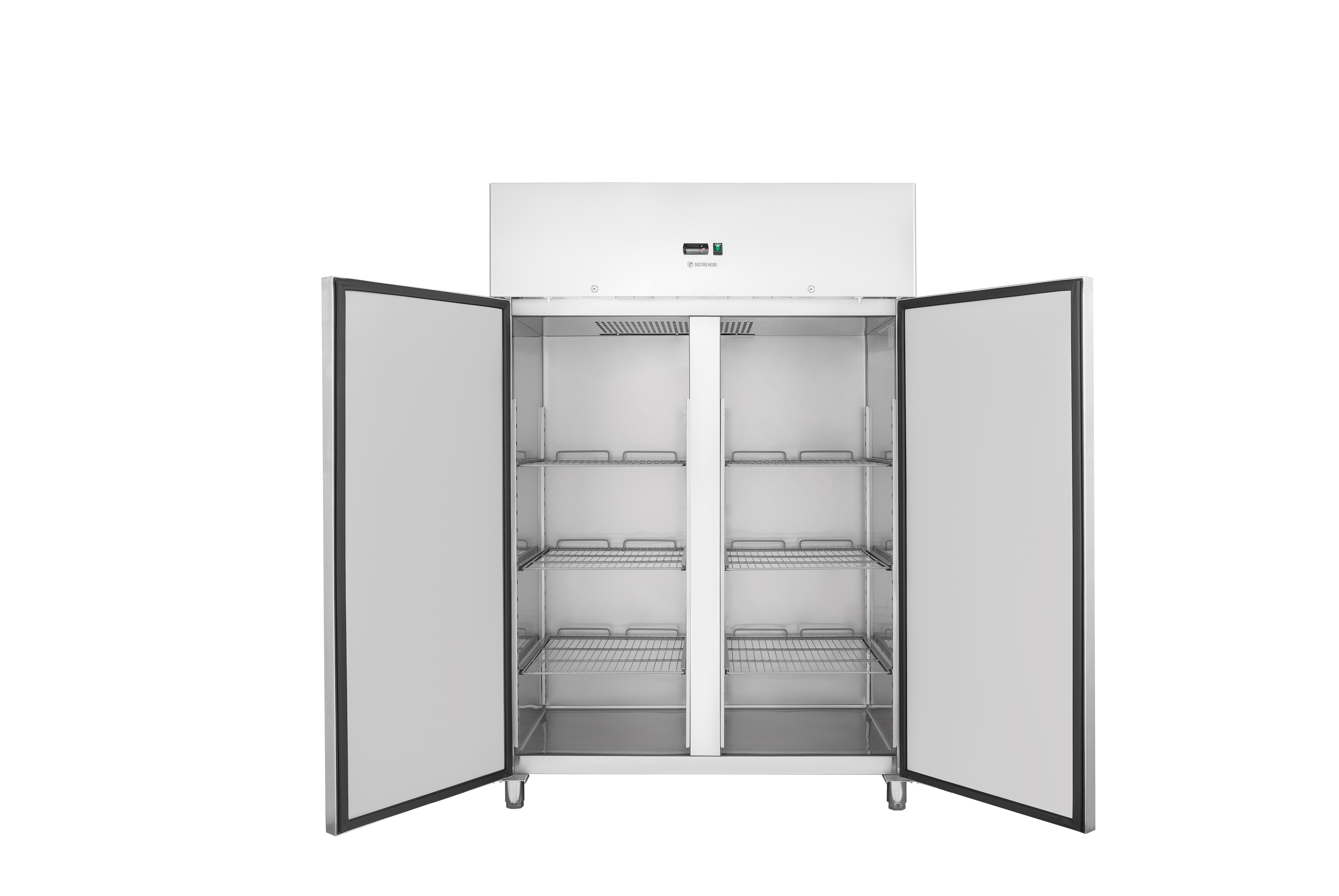

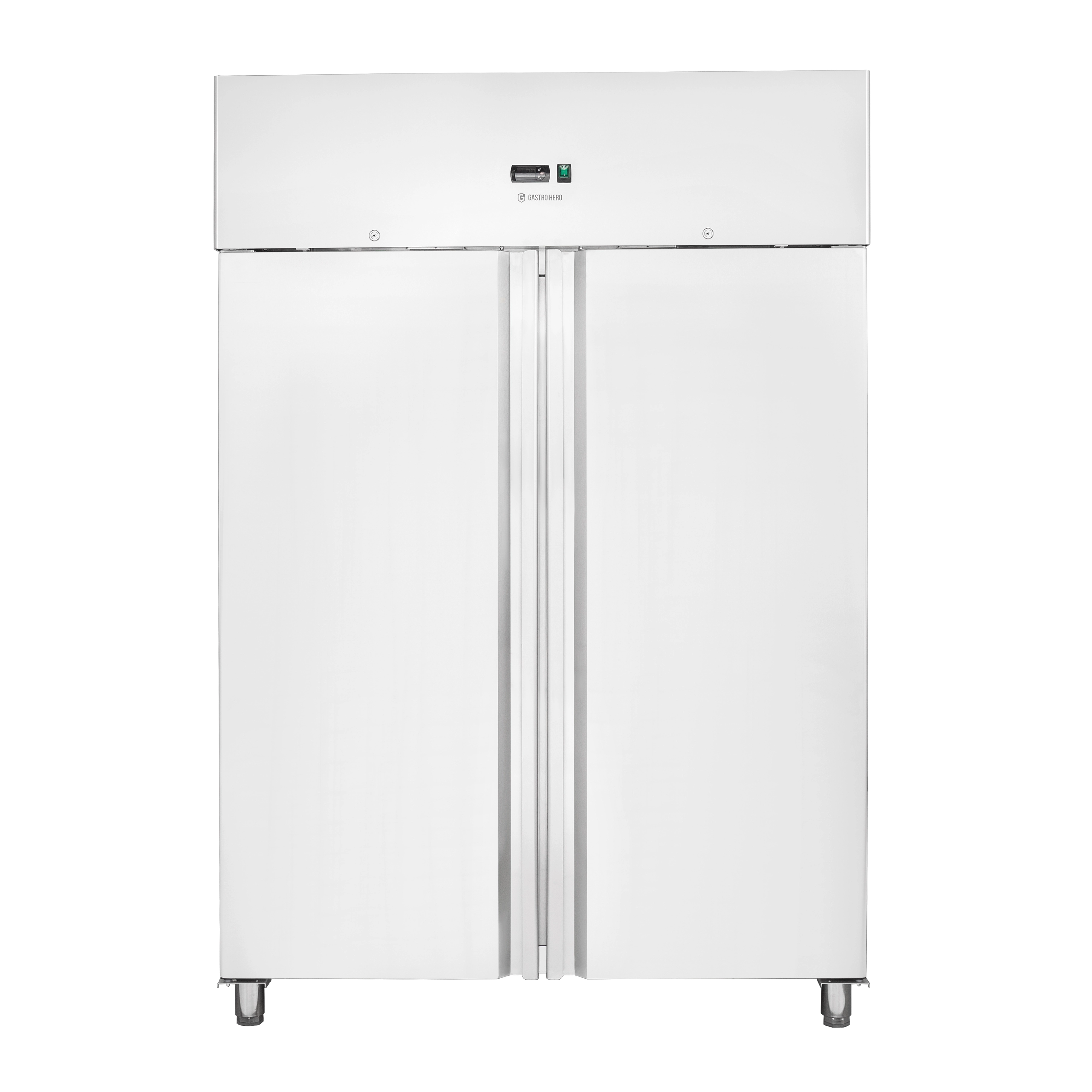

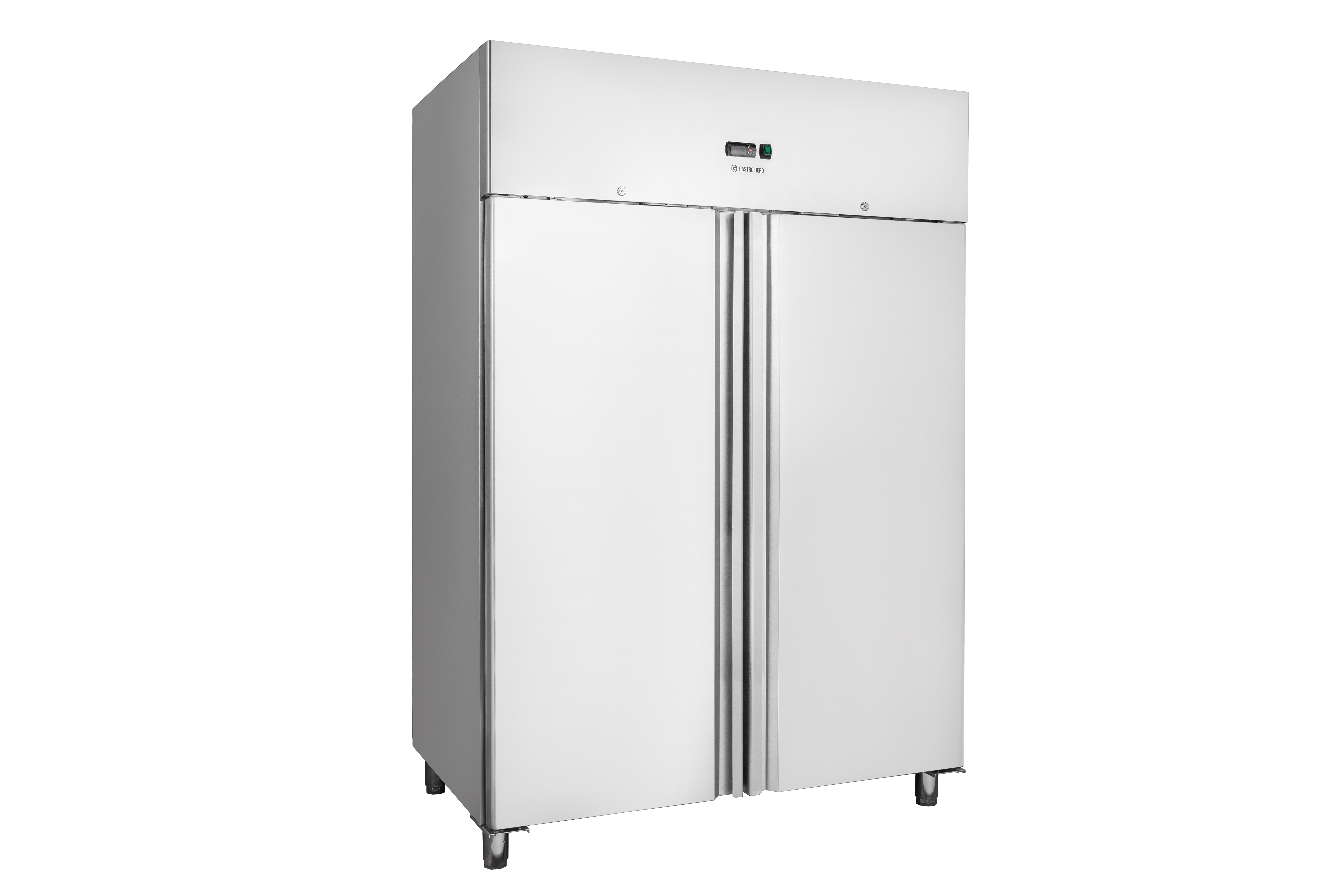

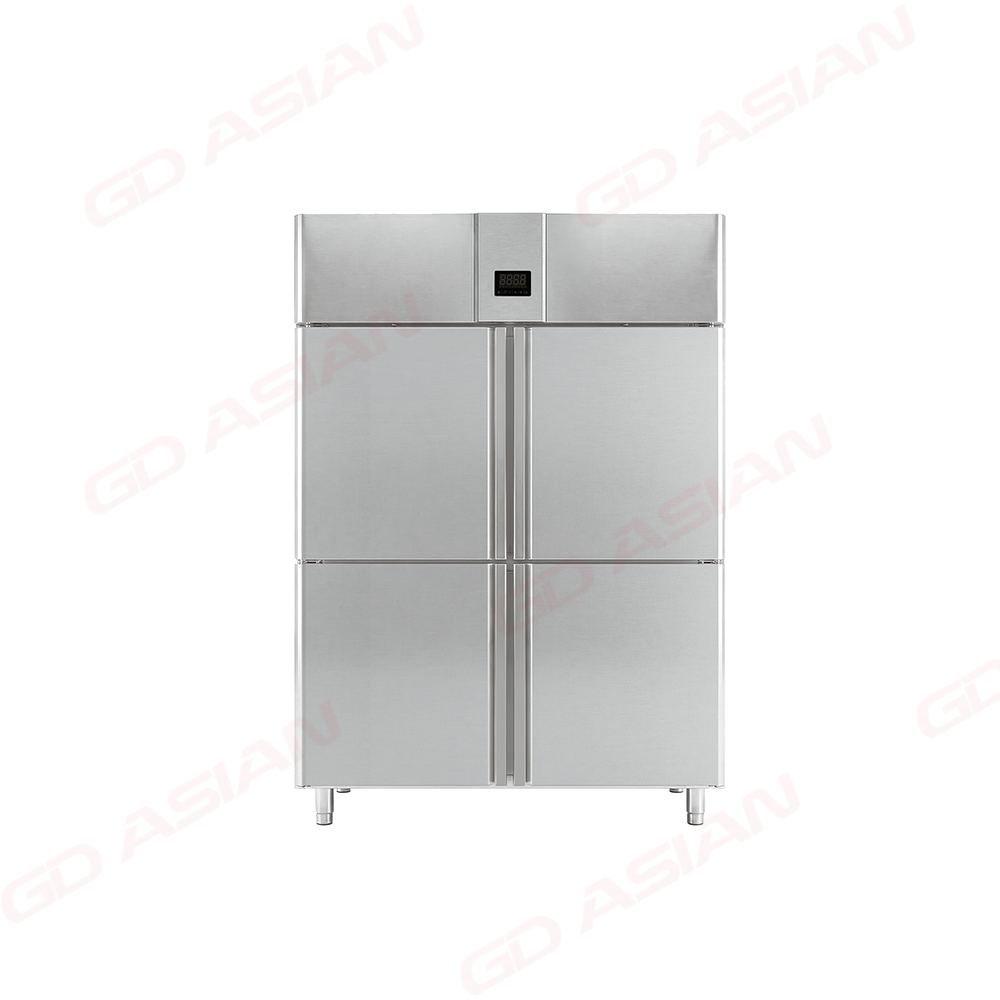

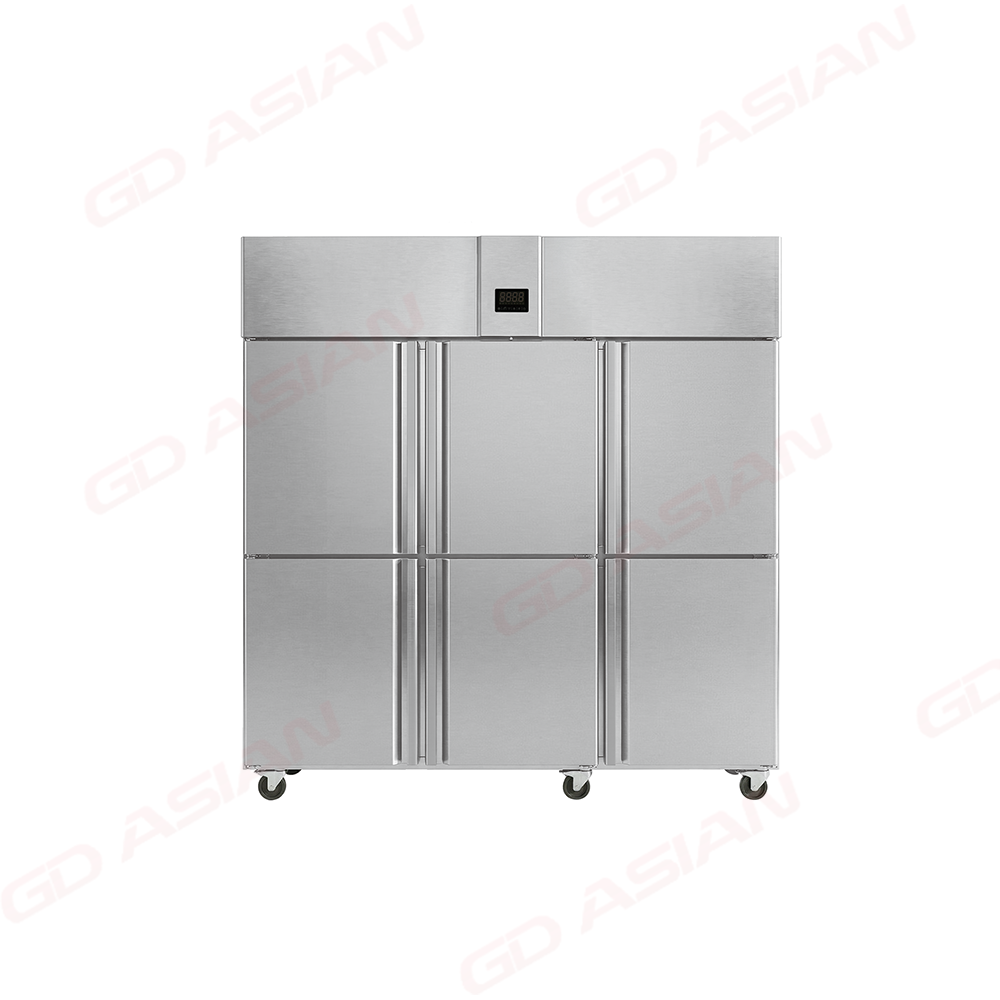

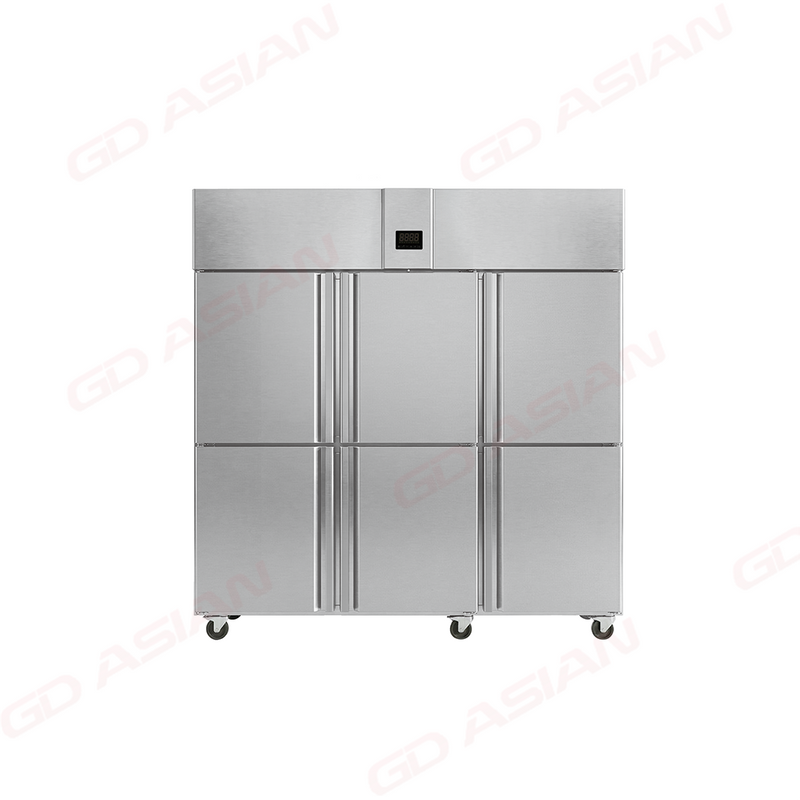

Asian Style Class 5 Refrigerated Cabinet with Monoblock

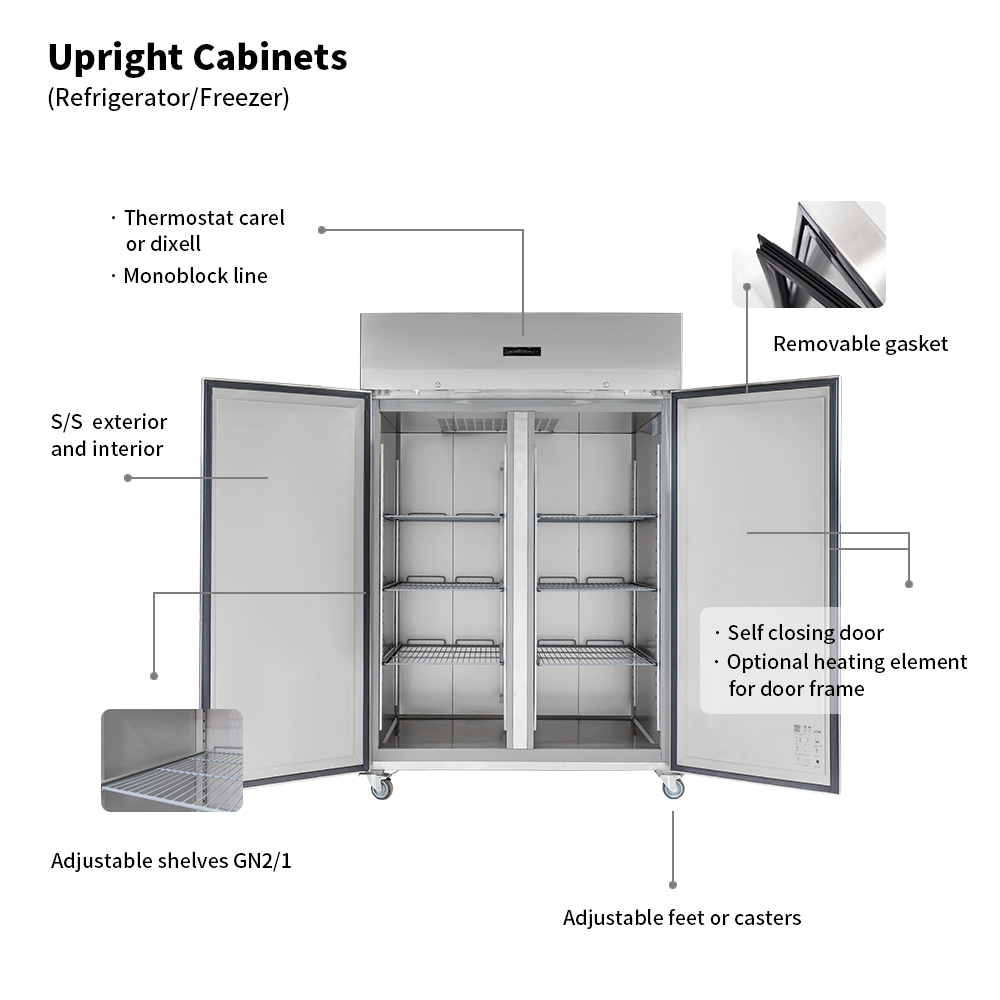

The monoblock line GN1200 series embodies modern European engineering with its professional-grade stainless steel build, tailored for demanding kitchen environments. Clients may select between robust SS201 or superior SS304 finishes for both interior and exterior panels. These versatile chillers operate across two critical temperature bands: 2°C to 8°C for fresh goods and -18°C to -22°C for frozen items. Standard features include energy-efficient LED interior lighting and compatibility with universal GN2/1 pan shelving. A trusted solution in European food service, this model adapts seamlessly to varied refrigeration requirements.
Availability:
Quantity:
  • DNH520/980/1160/1530 TNM

REFRIGERATED CABINET


Asian Style - CLASS 5


- Stainless steel construction

- 70 mm insulation

- Climate class 5

- Monoblock ventilated cooling

- Digital controller (Wi-Fi optional)

- Self-closing doors

- Full solid door or half door

- Magnetic replaceable gasket

- Lock & key

- Adjustable feet or castors

- LED lighting


ModelDNH520TNM-PTDNH980TNM-PTDNH1160TNM-PTDNH1530TNM-PTDNH520BTM-PTDNH980BTM-PTDNH1160BTM-PTDNH1530BTM-PT
Dimension (mm) (W x D x H)700 × 800 × 19801200 × 800 × 19801400 × 800 × 19801800 × 800 × 1980700 × 800 × 19801200 × 800 × 19801400 × 800 × 19801800 × 800 × 1980
Temperature (°C)-2 ~ 8-2 ~ 8-2 ~ 8-2 ~ 8-22 ~ -18-22 ~ -18-22 ~ -18-22 ~ -18
Capacity (L)5209801160153052098011601530
Climate class55555555
Shelves36693669
V/Hz230/50230/50230/50230/50230/50230/50230/50230/50
RefrigerantR290R290R290R290R290R290R290R290
Loading Qty/40HQ4423221444232214

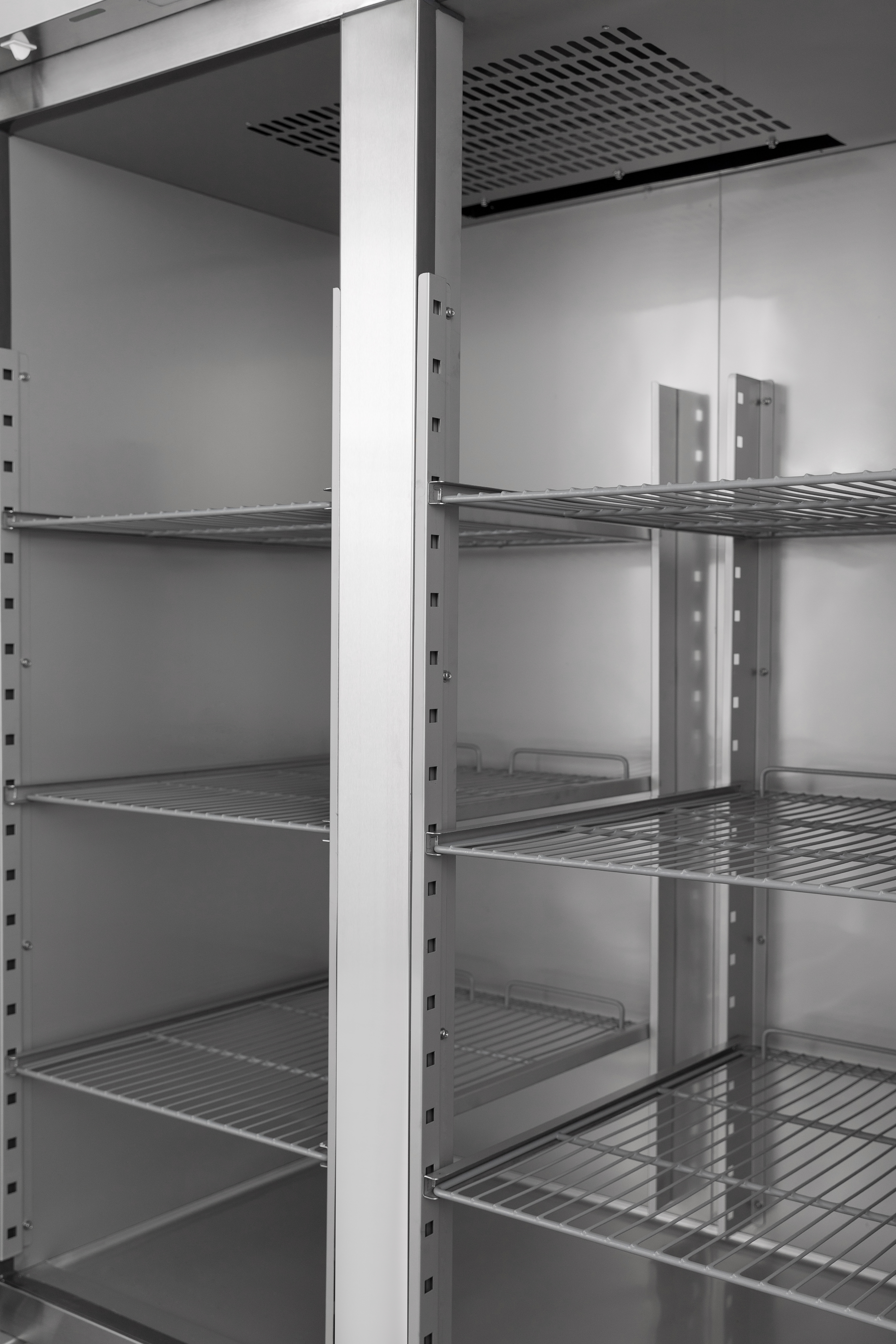

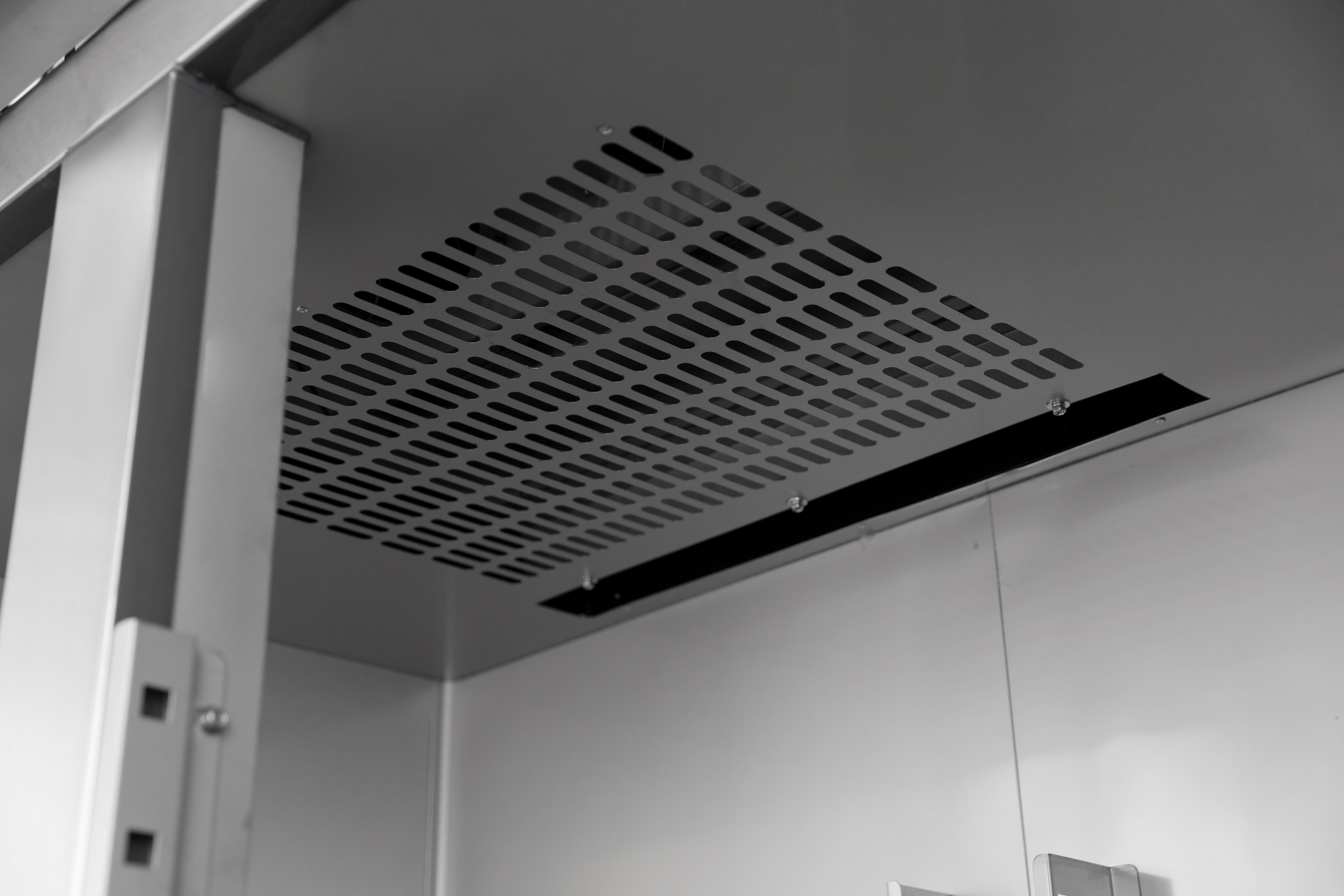

  • Ventilated cooling
    Make sure the temperature of the cabinet is uniform.
  • Material SS304/SS201
    For different price points and available for different customer needs.
  • Digital thermostat
    Have famous brands: Dixell, Carel, Eliwell.
  • Monoblock Style
    Monoblock:Convenient for subsequent maintenance
  • Automatic defrost
    Saves energy. Prevents frost buildup. Ensures consistent cooling.
  • Reversible door
    When open less than 90°, the door can close automatically.
For Professional Kitchens
Ideal for back-of-house storage, our upright chillers maximize space in commercial kitchens. They safely store bulk ingredients, dairy, and pre-prepped items at consistent temperatures. Durable stainless steel construction ensures easy cleaning and complies with food safety standards, supporting efficient daily operations.
For Restaurant Operations
These versatile chillers serve as all-purpose storage solutions in restaurants. Use them for beverages, fresh produce, or backup inventory. Their organized interior with GN pan compatibility keeps ingredients accessible during busy services, reducing kitchen congestion and streamlining workflow.
For Hospitality & Catering
Perfect for hotels and event venues, our chillers handle high-volume storage needs for banquets and buffets. They maintain precise temperatures for various items, from chilled desserts to fresh ingredients. The professional design and reliable performance meet the demands of institutional food service.
